The belt conveyor turning device in climbing Coal Huashan Mine
Release date：2012-11-6 information：The Xuzhou mine Tianke Mining Technology Co., Ltd.
Climbing Coal the Huashan mine is an annual output of 100 tons of modern mine. Mine to prepare the new mechanized mining face 2114 Transport Lane, matching the face to open up to four variables to point, due to the complex geological conditions, specific conditions, distance: 718m, traffic in the first half of 2004: 600T / h, belt speed: 1.9m / s bandwidth: 1000mm with strong: 1000s. Transport line in figure I. Change to the presence of the original transport system is complicated, a belt conveyor to be able to solve the transport distance, now want five the belt conveyor lap to complete. This will greatly increase the cost of production.

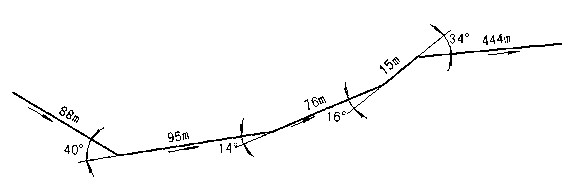

A transport route map
After extensive research, production turning of the belt conveyor device the Xuzhou TIANKE Machinery Manufacturing Co., Ltd. The entire transportation line the three belt conveyor turning device the are B10040Z, B10014Z and B10034Y. Secondary concrete pouring mounting way. So with only two installed power of 2 × 75kW belt conveyor to complete the transportation task. Specific arrangement shown in Figure.
Corner transport belt conveyor turning device can replace multiple conveyor lap, reducing the number of equipment layout Face coal system, reduce leasing costs; less playing equipment cavern, reduce production costs; reduce the total installed power of the coal transport system, reduced operating costs; simplify the transportation system, and improve the reliability of the transit system. Very impressive field practice has proved effective. Due to the application of the belt conveyor turning device, shorten the the roadway construction time and installation time.At the same time, the belt conveyor turning device structure is simple, less wearing parts, and easy to replace, little maintenance, can better ensure fully mechanized mining face production.
The transportation system since its installation and operation in mid-November 2004, running good condition.
