Belt conveyor turning device in Xuzhou Mining Group mineral collector (roadway Transportation)
Release date：2012-11-6 information：The Xuzhou mine Tianke Mining Technology Co., Ltd.
Xuzhou Mining Group set mine to an annual output of 150 tons of modern mine. The second half of 2003 mine plan transformation of the original transport Lane orbit belt transport, due to the complex geological conditions, the transport tunnel in variable slope change to the following specific conditions, distance: 600m, traffic: 400T / h, with speed: 2m / s bandwidth: 800mm. Transport line in figure I. Complicated due to the variable slope change to the presence of, the original transport system, a belt conveyor to be able to solve the transport distance, two belt conveyor lap is now going to be completed. This will greatly increase the cost of production.

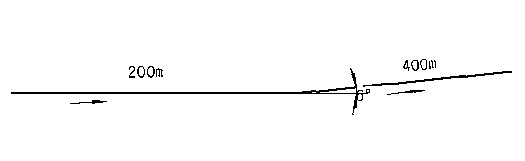

A transport route map
After extensive research, Xuzhou Machinery Manufacturing Co., Ltd. Tianke production B8006 belt conveyor turning device. Secondary concrete pouring mounting way. So only one belt conveyor to complete the transportation task. Specific arrangement shown in Figure.
Corner transport belt conveyor turning device can replace multiple conveyor lap, reducing the number of equipment layout Face coal system, reduce leasing costs; less playing equipment cavern, reduce production costs; reduce the total installed power of the coal transport system, reduced operating costs; simplify the transportation system, and improve the reliability of the transit system. Very impressive field practice has proved effective. Due to the application of the belt conveyor turning device, shorten the the roadway construction time and installation time.At the same time, the belt conveyor turning device structure is simple, less wearing parts, and easy to replace, little maintenance, can better ensure fully mechanized mining face production.
The transport system has been running since October 2003 installation, good running condition.
