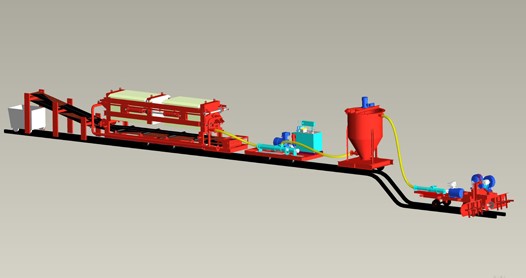

MQC-15 filter press for mine clearance machines



For water position clear dig the problems, Xuzhou Tianke launch process and its equipment for mine water storage dredging. After nearly a decade of technical exploration, and more than two hundred sets of dredging equipment to use in the coal mine, the craft and its equipment is more sound and mature: the formation of multi-variety series products: loading machine for dry materials composite thickness combination of materials handling equipment, dredging equipment for fine materials, to better adapt to the different traits slime dredging for tailings dewatering kinds of underground water positions and coal washing plant, sewage station processing.
Coal mine clearance machine is divided into: MQC-15, MQC-15 / F
MQC-15 coal mine clearance machine has the following characteristics:
1. Continuous and efficient: the host the dual work area filter press, the formation of a continuous operation, 1.5 to 2 times the efficiency.
2. Adaptable: all kinds of water positions in a variety of performance slime using different processes and equipment, handle better.
3. Easy to move: the equipment can be made mobile Needless disassembly, replacement venue, easy to use.
4. Full hydraulic control: many implementing agencies (belt drive roller, mixing pumps) hydraulic components, control integration, energy saving, reducing equipment investment, space-saving.
5. Special delivery pump: a filter large particles (0 ~ 11mm), Suct.lift (7.5m), a high concentration (40 to 60%).
6. Multi-species: general type, mobile, composite, directly, can be used alone may als be used in combination.
Kinds of coal mine water positions and various traits of slime, the system can achieve pumping, concentration, dewatering, loading automation and streamlined operations, and can also be used for the dewatering of the coal washery slime recovery. The equipment successfully applied in the mine of Shenhua Group, Yanzhou Mining Group, Zaozhuang Mining Group, Xinwen Mining Group, Jincheng Mining Group, Lu'an Mining Group, more than one hundred and ten positions in the clean-up of the mine water to enter the new era of mechanization cleanup.~
Selection Guide:
1. When the particles in the water compartment and dehydration was dry materials like good selection of efficient continuous loading machine (GLZ-I).
2. Particles less than 0.2mm Sump accounting for more than 60%, the choice of filter press mine clearance machine (MQC-15).
3. When the particles in the water positions greater than 0.2mm accounting for more than 60%, the choice of the composite mine clearance machine (, MQC - 15 / F).
The main technical parameters:

No.

Device Name

Parameter name

Parameter values

(1)

Dual work area filter press

MYSZ



1



Handling capacity (dry material) (t / h)

3-5

5-8

2



Feeding concentration (%)

40-50

3



The material moisture (%)

≤30

4



Motor power (kw)

11+3

5



Recycled material particles (mm)

0.02-11

6



Equipment Dimensions (mm)

5860*1450*1560

6550*1550*1660

(2)

Buffer mixing equipment

HG-4





1



Volume (m 3 )

2.5

2



Power (kw)

4

3



Dimensions (mm)

Φ1200*2650

(3)

Mining slurry pump

NB15/1.2-15





1



Flow (m 3 / h)

8-13

12-18

2



Head (m)

0-120

1-120

3



Motor power (kw)

11

15

4



Import Size (mm)

100

100

5



Import Size (mm)

100

100

(4)

Mining slurry pump

NB15/1.2-15





1



Flow (m 3 / h)

8-13

12-18

2



Head (m)

0-60

0-60

3



Motor power (kw)

7.5

11

4



Import Size (mm)

100

100

5



Export Size (mm)

100

100

(5)

Truck mixer (optional)

MQ-2





1



Roller diameter (mm)

500

2



Drum Length (mm)

1800-2600

3



Power (kw)

4

4



Walking speed (m / min)

10

（6）

The agitator (optional)

RJ-3









Power (kw)

3





Speed ​​(r / min)

1450
