Belt Conveyor turning device

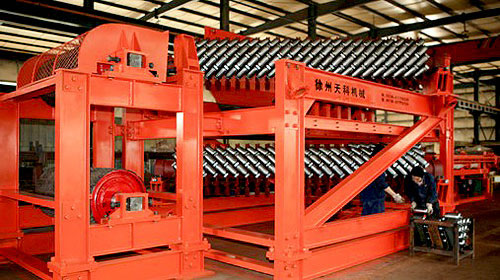

Belt conveyor turning device is a patented product of our company. The devices do not need power, installed instead of the roadway turn two or more belt conveyor lap transportation. Successful application in coal mine after more than 10 years of technical exploration and more than six hundred sets of turning device, the device has to overcome the initial lack of structure, use of the technology has been very mature:
1. The smaller form factors, as long as it can meet the overlapped space of the two belt conveyor can be installed turning apparatus.
2. Turning small roller structure more compact rollers arranged in space envelope the tape trajectory curve is more consistent with the surface of the drum, the belt conveyor running drag coefficient decreases
3. Small roller steering rollers seal structure change, the increase in the number of drum water bad bad environment can work properly.
4. The steering rollers on the small roller appearance changed by the cylinder type for the spindle-type, enable the tape to run more smoothly on the drum.

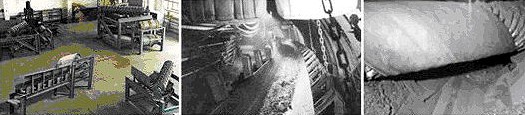

Since the the turning device surrendered successful application has been successfully applied in Shenhua Group, Yanzhou Mining Group, Xuzhou Mining Group, climbing Coal Group, Datong Coal Industry Group, Huainan Mining Group over ninety Bureau mine over six hundred units, the majority of users at home.　　
Using the scope and parameters of selection:
Steering angle: 0 to 180, can be realized
Belt width: 500mm ~ 1400mm
Machine type: All types of belt conveyor
Turning Views: l ~ 2 times
Drag coefficient: K = 1.08 ~ 1.12
Dimensions:

The angular (o) Bandwidth (mm)
650 800 1000 1200 1400
0-11 180-69 3300x1300x1600 3400x1500x1700 3500x1700x1900 4500x2100x2400 4600x2500x2600
12-22 168-158 3300x1400x1650 3600x1600x1700 3500x1900x1900 4500x2200x2600 4600x2700x2600
23-32 157-148 4000x1400x1650 4300x1700x1700 4900x1800x1800 6500x2600x2450 5000x2700x2650
33-42 147-138 3600x1450x1600 4100x1800x1750 4500x1900x1800 4500x2400x2500 4700x2750x2700
43-52 137-128 3500x1500x1600 3800x1800x1750 4000x1900x1800 4500x2500x2500 5100x3100x2800
53-62 127-118 3400x1550x1600 3500x1800x1750 4600x2000x1880 4600x2600x2500 5500x3300x2850
63-71 117-109 3600x1600x1600 3800x1830x1750 4100x2100x1920 4900x2700x2500 5800x3400x2900
72-79 108-101 3400x1650x1620 3800x1850x1750 4200x2100x1900 5000x2750x2500 6000x3500x2950
80-85 100-95 3000x1700x1650 4200x1980x1800 3200x2150x1980 5200x2900x2550 6500x3550x3000
86-90 94-90 3800x1700x1660 4200x2000x1800 4400x2300x2000 6500x3100x2580 6800x3600x3100
Pinch device Dimensions (L x W x H) 3000x920x1250 3000x1100x1300 3200x1300x1500 3500x1580x1800 4000x1850x2200

Ready turning device, pressure with the device, the small turn according to the degree can be applied to the site.

Features:
1. Save jobs set: do not need supervised patrol the middle of the belt conveyor device to conduct regular inspections, failure is easy to find, easy to exclude.
2. Easy to use: debugging principles with common belt conveyor, a belt conveyor operator can debug
3. Easy maintenance: only roller type wearing parts, the rest of common parts, users can maintain their own repairs without specialized personnel.
4. Easy to install: anchors, concrete foundation, point column can achieve
5. Reduce equipment early input: each turn the device instead of a belt conveyor, head, tail, tension, cables electrically controlled storage with. Laying and installation work are significant savings.
6. Maintaining the original characteristics of the belt conveyor: the original belt conveyor after the installation of turning device, the various transport parameters characteristics will not change.
7. Easy application: Because it is a mature technology, and the significant economic benefits, easy inclusion of new products or innovative products, and promote mine plan, to facilitate the promotion and summarized
8. The energy-saving effect is remarkable: due to the reduction of installed capacity, can save a lot of power consumption during operation. Operates under the section, the solution operates under the system problems, improve system security and reliability.
9. Applicability: can be used with any specifications belt conveyor.
10. Low operating costs: equipment disassembly easy transportation, long-term repeated use; system is simplified, low failure rate; the Provincial people, energy-saving, low maintenance costs, significant economic benefits.

Reliable quality, comprehensive and timely service:

　



Turning device in core technologies are concentrated in the steering rollers, the steering roller drum quality determines the quality of the entire device. The envelope surface of the curved surface of the small roller and a space formed by the many small roller, so that the running resistance and wear of the tape is minimized. More perfect seal design make it in harsh environments become a reality.

1. In a belt transport system in the past, due to the transportation roadway bending and must the belt conveyor lap transport or must be laid when the the large downpipe lap transport, the most suitable for the stupid turning device can save labor, energy saving, the provincialThe installation of the equipment, the provincial power saving control.
2. In the laneway, turning device belt extends to driving head can replace trouble Shop downpipe, save labor, energy saving, the provincial maintenance, security is greatly enhanced after use.
3. Hesitation turning device in use before and after the turn of the belt machine which will share a head and a reservoir with a device and tensioning device, which makes the tail very short distance to the corner (the shortest is only about three meters), so that when Shun the trough belt and under a belt by turning device composed of a belt conveyor, does not exist at the end of the mining requirements of the the belt machine shop no less than the trouble to replace downpipe, greatly improved work efficiency.
Turning device can solve the under transported brake problem, increase the security of the system.
Pledge:Selection consulting, technical guidance, and to ensure that the product upgrading and lifelong after-sales service.
Company commitment:Within 36 hours and sent officers to solve the user everything difficult.
