Quick slime loading machine

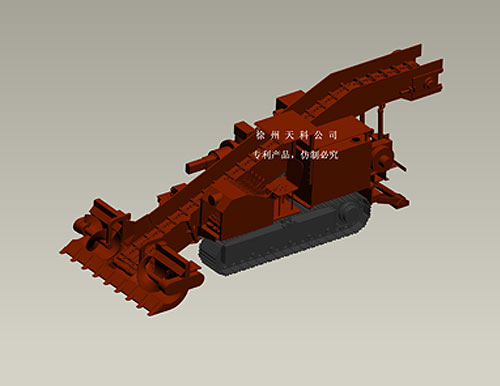

Photo 1: Product Image

  The product of three the unloading ways:

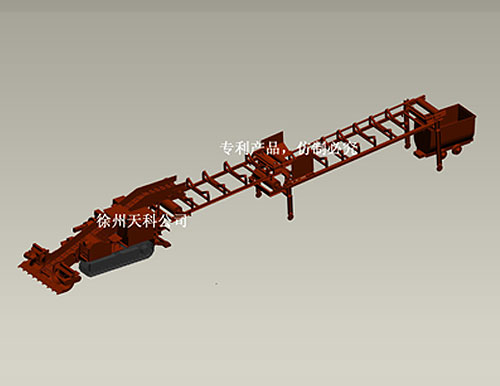

Photo 2: directly through the telescopic belt the designated discharge to the mine car (as required under the belt can be stored more vehicles tramcar)

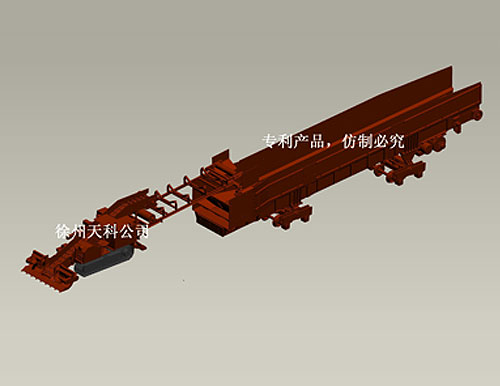

Photo 3: Second Win belt discharge to move the waste rock storage, storage to ensure continuous operation of the shipment.

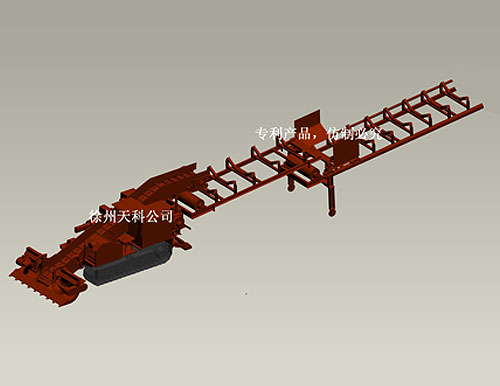

Photo 4: Second Win belt discharge to the main transport belt.

  Technical parameters:

No.

Project

Unit

Parameter

1

Production capacity

M3/h

100

2

Installed power

Kw

45

3

Overall weight

T

6.9

4

Dimensions (excluding the two transport belts)

L * W * H (mm)

5300*2100*1900

5

Transportation of materials granularity (max)

mm

400



6



Package of Second shipped belt specifications

Bandwidth (mm)

650


Belt speed (m / s)


11


Length


According to customer requirements


  Note:
  ZM: coal with coal loading
   L: spiral collector
   100: coal loading capacity:M3/h
