Properties:

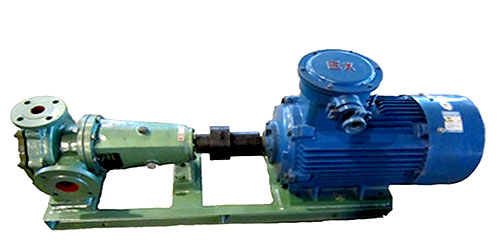

PN * (A) series centrifugal slurry pump I developed specifically for the clean-up and delivery of coal mine slime slime concentrated slurry filter press the dedicated filter press pump. The pump is a centrifugal end of the shaft suction pump, replace enamel pump, ceramics pump, rubber lined pumps, fluorine alloy pump, F-type corrosion-resistant pumps, 1H chemical centrifugal pump replacement products to meet the filter press process delivery the temperature is -10 to 200 with a the various corrosion liquid slurry of particles, viscosity suspended solids. The product can be widely used in coal mining, petrochemical, rare earth smelting, sewage treatment and other viscous fluid and thick slurry liquid containing particles transported.
How it works:
This product is a single-stage single-suction centrifugal centrifugal slurry pump. Rely on high-speed rotation of the impeller, the liquid in the inertial centrifugal force to get energy to raise the pressure. Pump before working, the pump and the inlet tube must be filled with slurry, to prevent the occurrence of cavitation. When the impeller is rotated rapidly, the blades urge the slurry quickly rotated, the slurry under the effect of centrifugal force from the rotating impeller fly, the slurry within the pump after being thrown, the central portion of the impeller form a vacuum region. Pressure slurry within the slurry source through the pipe network under atmospheric pressure (or pressure) to the inlet tube. This endless cycle, can achieve continuous pumping liquid.
Features:
1. Suction lift: fluid intake can be higher than the liquid source pool can also be lower than the liquid source pool the (Vacuum liquid and intrusion pipette) m.
2. Conveying higher concentration, suitable for conveying After stirring mud.
3. Delivery pressure stability, security and good pressure, applies to the need to stabilize the pressure filter press filtration system.
4. Head high: the Young program can choose between 0-80m.
5. Simple structure, reliable performance, easy maintenance, long service life.
6. Seal fluorine plastic alloy sleeve filler double mechanical seal.
Performance parameters:
