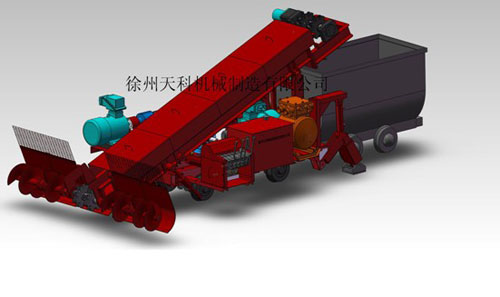

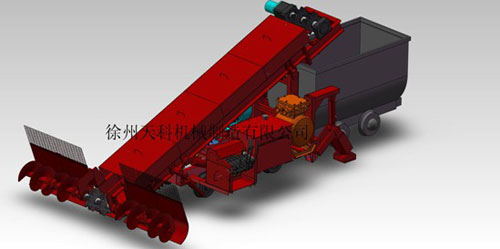

MQ-50-type multi-function slime dredging machine


MQ-50-type multi-function slime dredging machine


MQ-50-type multi-function slime dredging machine (with pump)


I. Overview:
MQ-50-type multi-function slime dredging machine patented product is designed for the cleanup of underground water storage of dry slime and various viscous slime. The machine uses symmetric spiral aggregate (mixing), reverse the scraper conveyor mounted mine car (or slime dedicated pumping) principle design water position clear dig multifunctional clearance machine.
The machine can be used for water storage dry slime direct to collect loading, complete slime dredging. Spiral width adjustable width to adapt to a variety of water storage. With mining slurry pump, can also be achieved the various viscous slime Qing dug Sump slime transported to a designated location, such as a belt, short positions, or with the filter supporting to complete the clean-up of slime and dehydration treatment.
Simple structure, full-featured, easy to operate, adaptable, that can be used alone to complete the clean-up of the water positions slime with slime dehydration filter supporting the use the water positions slime clear dig ideal equipment .
Second, features:
1. symmetrical spiral of collection or stir the slime.
2. reverse scraper conveyor design, efficient conveyor paste slime.
3. equipped with a mud pump, achieve multifunction dredging.
4. full hydraulic drive and control, flexible operation.
5. the installation of auxiliary propulsion fuel tanks, which can effectively improve the propulsion rail wheel slip.　
Third.the performance parameters of the table:

No.

Parameter name

Unit

Parameter values

1

Production capacity

Slime loading

M3/h

50

Slime conveyor

M3

20

2

Hydraulic station power

KW

11

3

Mud pump power

KW

15

4

Working walking speed

M/min

6

5

Gauge

mm

600/900

6

Slime conveyor lift

M

120

7

Dimensions

mm

4160*2430*1850

8

Weight

Kg
