MQC-15 for use in mines dug car

1. Features:

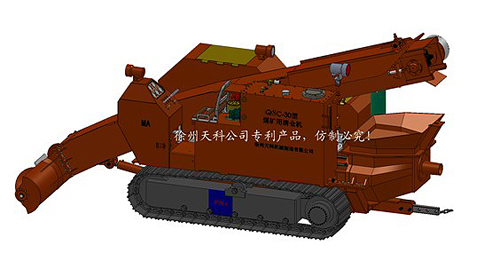

QSC-30 coal mines with dredging vehicles (hereinafter referred to as dredging the car) is a special equipment for coal mine water position clear dig coal mine explosion-proof motor powered, driven hydraulic pump as the the clearance machine's walking, aggregate conveyorpumping function of a power source. This product is working in the mine water cartridge, the water sump in the lower part of the precipitate was diluted stirring, causing the slurry, and then delivered to the subsequent device by the pump tube; the upper comparator Shuicang dry block slime directly set by the feeder collected transshipment automatically go to the mine car clearance machine tail drag scraper conveyors. The Outlet Main features as follows:
a) The structure is simple, easy to operate, easy to repair;
b) Clearance stirring aggregate spiral forward and backward / up and down run, to adapt to the water storage in the sludge collection;
c) transfer pump using the piston pump, suction concentration, high efficiency;
d) the electrical control system overload, overcurrent, short circuit protection, control of the normal operation of the electrical equipment.
e) lighting and signal systems equipment operation, lighting and workplace warning signal.
f) chassis system crawler walking, to ensure the smooth running of the equipment.
1.1 The main purpose, the scope of
This machine is mainly used for coal mine water sump slime dredging of slurry handling equipment for use, can also be used for the settling ponds, ditches silt clean-up, use the slope at ± 18 °.
1.2 Model Name Description
The main technical parameters:
